Diagnostics
Checking the device, handpiece, vacuum and RF functions.
SERVICE CASE · WROCŁAW
Beauty Planet 3D Contour repair — vacuum and RF
Beauty Planet 3D Contour
Diagnostics and repair of a multifunctional Beauty Planet 3D Contour aesthetic device. The fault concerned the handpiece: neither the vacuum system nor the RF function worked.
Equipment
Beauty Planet 3D Contour
Problem
Vacuum + RF
Work scope
Diagnostics and handpiece repair
Location
Wrocław
SERVICE REQUEST
Vacuum and RF were not working
We received a device for diagnostics: Beauty Planet 3D Contour, a multifunctional aesthetic system used, among other applications, for body contouring treatments.
The problem concerned one treatment handpiece. During operation, neither the vacuum system nor the RF function worked.
Both the handpiece itself and its connection to the device needed checking.
DIAGNOSTICS
Handpiece power supply problem
During diagnostics, we checked handpiece operation and the functions dependent on its power supply.
We established that the handpiece was not receiving power correctly. As a result, the vacuum and RF functions did not work.
- incorrect power supply to the handpiece
- vacuum system not operating
- RF function not operating
- handpiece electrical connections requiring inspection
VACUUM AND RF
Checking handpiece functions
After repair, we checked the functions responsible for handpiece operation.

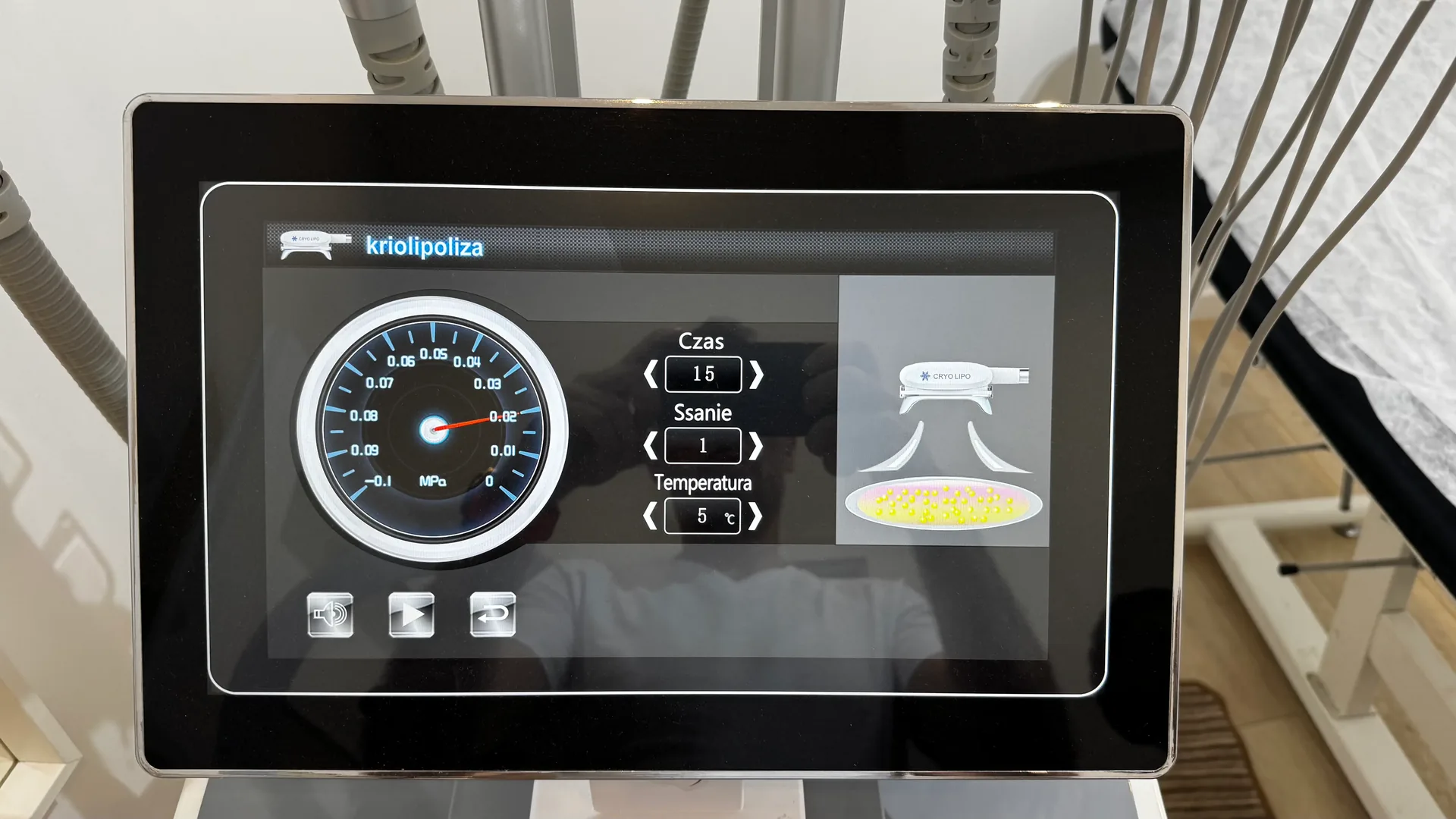

The Beauty Planet 3D Contour allows vacuum levels and RF parameters to be adjusted directly through its interface.
After restoring the correct power supply, we tested the repaired functions.
WORK SCOPE
What was done?
Servicing included handpiece diagnostics and restoration of its functions.
Power supply
Locating the problem preventing correct power delivery to the handpiece.
Repair
Restoring correct handpiece operation and its functions.
Test
Checking vacuum and RF operation after repair.
EQUIPMENT
Beauty Planet 3D Contour
The serviced unit was a Beauty Planet 3D Contour. According to its rating plate, it operates at 220–240 V, 50/60 Hz and has an input power rating of 1200 VA.
It is a multifunctional aesthetic system with several treatment technologies and a set of interchangeable handpieces.
This repair concerned the handpiece using vacuum and RF.
SERVICE RESULT
Vacuum and RF working correctly again
After identifying the cause, we repaired the handpiece and restored correct operation.
We tested the vacuum system and RF function after completing the work.
The device was checked after servicing and its repaired functions could be used again.
CASE STUDY · WROCŁAW
Beauty Planet 3D Contour photographs
LTS MARKET
Beauty Planet 3D Contour available for sale
A unit of the Beauty Planet 3D Contour in working condition, serviced by Laser Tech Service, is available from LTS Market.
The product page provides additional photographs, a description of its functions, included equipment and sales information.
View the Beauty Planet 3D Contour on LTS Market →
LASER TECH SERVICE
Aesthetic equipment servicing in Wrocław
Laser Tech Service diagnoses and repairs professional aesthetic and laser equipment.
Our work includes diagnostics of electronics, cables, connections, handpieces, vacuum and RF systems, and other treatment equipment components.
Our service centre is in Wrocław, and we also handle requests from customers throughout Poland.
In a separate job for Tiamo studio in Wrocław, a power cable caused the loss of vacuum. See Beauty Planet 3D Contour handpiece cable replacement. This is a different repair of the same equipment model; the two units are not presented as the same device.
